M0000806 SD Cutout
Scroll

M0000806

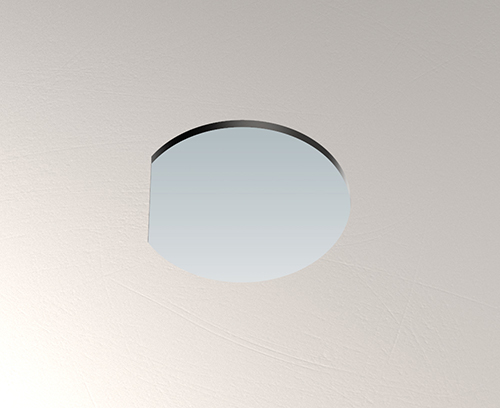

SD Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.

Diameter (mm) Dim A (mm)
4.95 4.4
6.4 6.02
6.3 6
6.6 6.1
7 6.5
7.2 6.8
8.2 7.6
8.6 7.8
9 8
9.8 8.7
9.7 8.9
10.3 9.8
11.1 10.2
11.2 10.7
12.9 12
12.7 12.05
13 12.1
13.2 12.2
13.7 12.9
15.5 13.25
14.4 13.7
15.2 14.2
15.5 14.7
15.5 14.8
16.3 15.2
17.6 16.9
19.2 18.2
19.1 18.64
22.3 21
25.7 24.2
28.5 27.18
35.16 33.61
56 53

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M0000806

Please select the product details you would like to include in the PDF.

Close
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Punch Tools

Catalogue Pages

Weight/1 part
1 g
