M5804140 Mounting plate kit L
Scroll

M5804140

Mounting plate kit L

Internal mounting plate kit for DATAMET L enclosures. For mounting PCBs and electronic assemblies. The mounting plate is fitted to pre-punched holes in the enclosure rear panel with the nylon pillars and screws supplied in the kit.

Supply

Mounting plate, M3 x 10 mm threaded pillar (x6) and M3 x 6 mm fixing screw (x12).

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5804140

Please select the product details you would like to include in the PDF.

Close
  • To be used for
M5840105 Datamet L

M5840105

Datamet L Modern aluminium wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear panel. Order front panels separately.

Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x2) and M3 x 8 mm (x4).

Close

M5840105

Datamet L
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
400x300x116.5mm

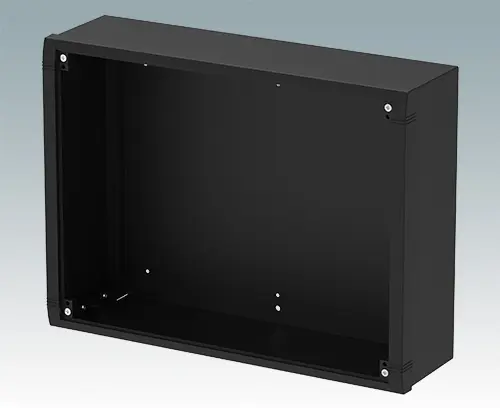

M5840109 Datamet L

M5840109

Datamet L Modern aluminium wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear panel. Order front panels separately.

Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x2) and M3 x 8 mm (x4).

Close

M5840109

Datamet L
product added to your basket
Aluminium
Black RAL 9005
400x300x116.5mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Matt anodised
Standards
REACH compliant
RoHS compliant
Width
325 mm
Depth
240 mm
Height
1.5 mm

Catalogue Pages

Drawings

3D Models

Weight/1 part
0.33 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
U.K.
