M6010305 INSTRUMET 10.5
Scroll

M6010305

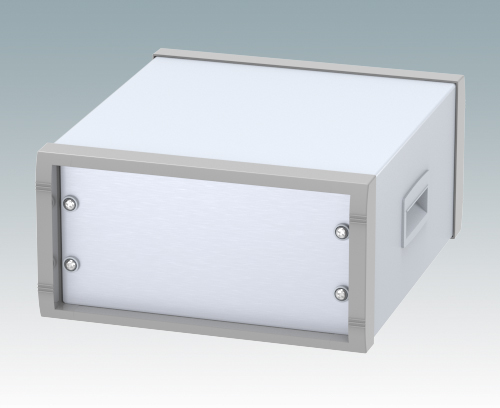

INSTRUMET 10.5" 3Ux350mm

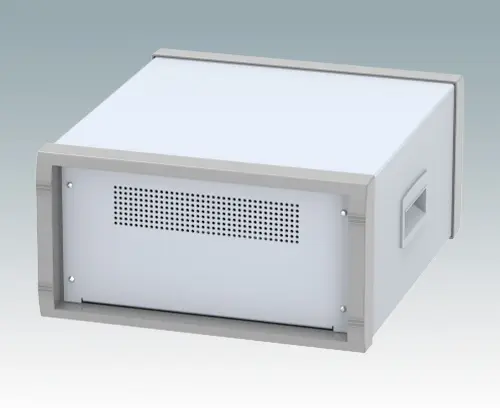

Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version

With side handles

Supply

Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6010305

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035

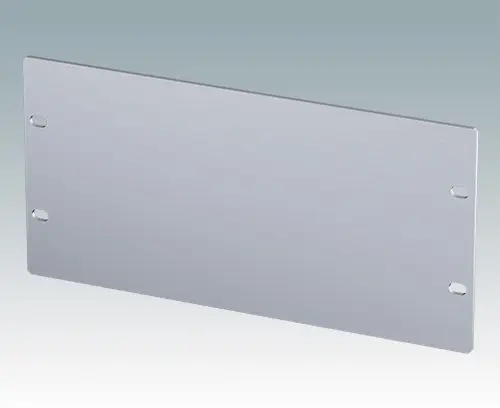

M6010001 Front panel 3Ux10.5"

M6010001

Front panel 3Ux10.5" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297.

Supply Front panel

Close

M6010001

Front panel 3Ux10.5"
product added to your basket
Aluminium
Matt anodised
269.2x3x132.5mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Light grey/window grey RAL 7035/7040
Standards
IEC 60297-3
REACH compliant
DIN 41494
RoHS compliant
Height
157 mm
Width
303 mm
Depth
350 mm
Height Unit
3 U

Catalogue Pages

Drawings

3D Models

Weight/1 part
2.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
