M5920015 METTEC 19
Scroll

M5920015

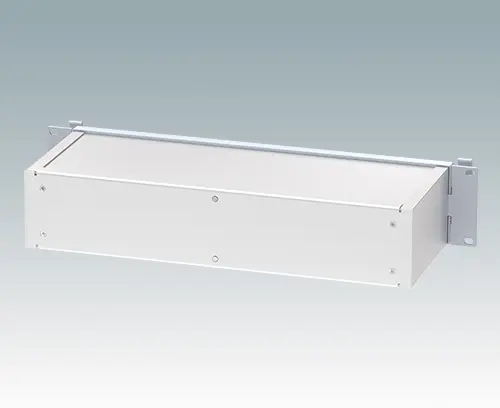

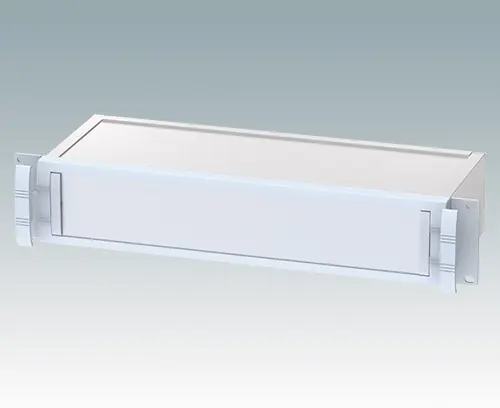

METTEC 19" 2Ux167mm

Modern and robust 19" rack case with integrated 'comfort handles'. All aluminium design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish. The enclosure can be supplied fully painted on request.

Supply

Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 8 mm (x4). Suppled assembled.

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5920015

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M5900020 Front panel kit (2U)

M5900020

Front panel kit (2U) Anodised aluminium front panel kit for 2U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5900020

Front panel kit (2U)
product added to your basket
Aluminium
Matt anodised
392.5x2x67.1mm
M5900201 Chassis plate (167mm)

M5900201

Chassis plate (167mm) Internal chassic plate for METTEC 19" enclosures 167 mm deep. For mounting PCBs, power supplies and electronic assemblies. Fits to the guide rails in the enclosure side extrusions.

Supply Chassis plate

Close

M5900201

Chassis plate (167mm)
product added to your basket
Aluminium
Natural finish
377x149x7.5mm
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Light grey RAL 7035,
Iridite NCP
Standards
IEC 60297-3
REACH compliant
DIN 41494
RoHS compliant
Height
88 mm
Width
482.6 mm
Depth
167.5 mm
Height Unit
2 U
PCB length, base
150 mm
PCB width, base
379 mm

Catalogue Pages

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
1.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
