M5100520 Front/rear panel kit AN (size 2 & 4)
Scroll

M5100520

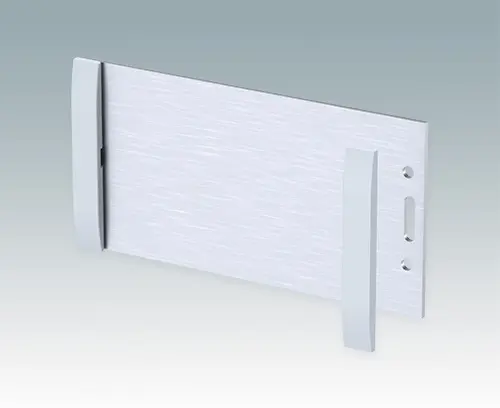

Front/rear panel kit AN (size 2 & 4)

Anodised aluminium front/rear panel for MINIMET size 2 and 4 cases

Supply

Anodised panel, 2 ABS trims (panel fixings supplied with case).

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5100520

Please select the product details you would like to include in the PDF.

Close
  • To be used for
M5113125 MINIMET 2

M5113125

MINIMET 2 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5113125

MINIMET 2
product added to your basket
Aluminium
Light grey RAL 7035
134.5x130x70mm
M5113225 MINIMET 4

M5113225

MINIMET 4 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5113225

MINIMET 4
product added to your basket
Aluminium
Light grey RAL 7035
134.5x200x70mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Matt anodised
Standards
REACH compliant
RoHS compliant
Width
129.5 mm
Height
2 mm
Depth
65.1 mm

Catalogue Pages

Drawings

3D Models

Weight/1 part
0.05 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
U.K.
