M6619444 TECHNOMET 19'' 4Ux400mm
Scroll

M6619444

TECHNOMET 19'' 4Ux400mm

Modern and highly attractive 19" instrument enclosure for mounting 4U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

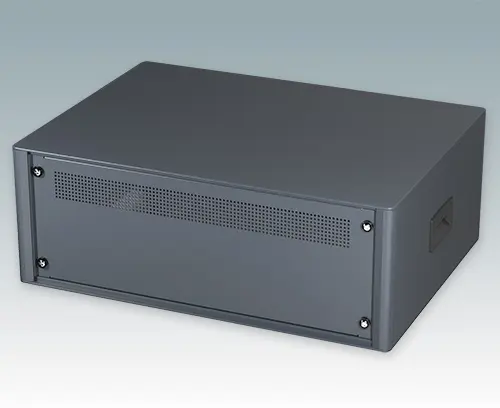

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version

RC194 with side handles

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6619444

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M5900018 19" mounting kit black screws

M5900018

19" mounting kit black screws Mounting kit for fitting a 19" rack case, subrack or front panel into a rack. Black screws and black cup washers.

Supply M6 caged nuts (x4), M6 x 16 mm black screw (x4) and black plastic cup washer (x4).

Close

M5900018

19" mounting kit black screws
product added to your basket
Black RAL 9005
M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019010

Front panel 1Ux19"
product added to your basket
Aluminium
Matt anodised
482.6x3x43.6mm
M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Version With ventilation slots

Supply Panel

Close

M6019011

Front panel 1Ux19" vented
product added to your basket
Aluminium
Matt anodised
482.6x3x43.6mm
M6019040 Front panel 4Ux19"

M6019040

Front panel 4Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019040

Front panel 4Ux19"
product added to your basket
Aluminium
Matt anodised
482.6x3x177mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Anthracite RAL 7016
Standards
IEC 60297-3
REACH compliant
DIN 41494
RoHS compliant
Height
200 mm
Width
539 mm
Depth
400 mm
Height Unit
4 U

Catalogue Pages

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
