M5302212 Wall mount kit M200
Scroll

M5302212

Wall mount kit M200

Wall mounting kit for UNIDESK M200 cases. The two extrusion profiles fit into grooves in the rear or underside of the case. This allows the UNIDESK to be mounting vertically or horizontally on a wall or other surface. The profiles have optional fixing holes to allow for easier adjustment when mounting.

Supply

2 anodised extrusion profiles

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5302212

Please select the product details you would like to include in the PDF.

Close
  • To be used for

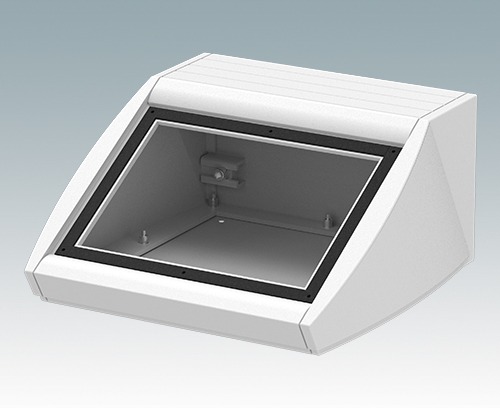

M5320105 UNIDESK M200 IP 54

M5320105

UNIDESK M200 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet, M3 x 12 mm (x20) and M3 x 12 mm T10 (x20). Supplied assembled.

Close

M5320105

UNIDESK M200 IP 54
product added to your basket
Aluminium
Light grey RAL 7035
200x200x102mm
IP 54
M5320109 UNIDESK M200 IP 54

M5320109

UNIDESK M200 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

Close

M5320109

UNIDESK M200 IP 54
product added to your basket
Aluminium
Black RAL 9005
200x200x102mm
IP 54

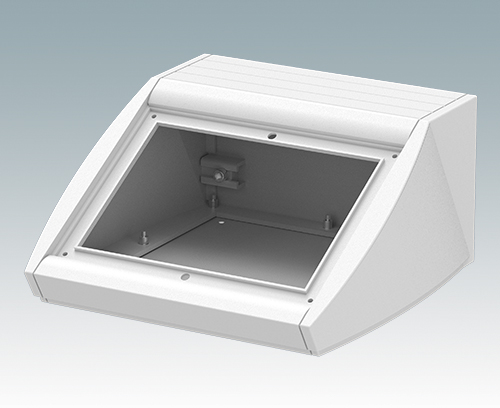

M5320115 UNIDESK M200

M5320115

UNIDESK M200 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

Close

M5320115

UNIDESK M200
product added to your basket
Aluminium
Light grey RAL 7035
200x200x102mm
M5320119 UNIDESK M200

M5320119

UNIDESK M200 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

Close

M5320119

UNIDESK M200
product added to your basket
Aluminium
Black RAL 9005
200x200x102mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Matt anodised
Standards
REACH compliant
RoHS compliant

Catalogue Pages

Assembly Instructions (Group)

Drawings

3D Models

Weight/1 part
0.05 kg
Customs tariff number
(METCASE product)
76042990
Country of manufacture
U.K.
