Unimet Instrument Enclosures
Scroll

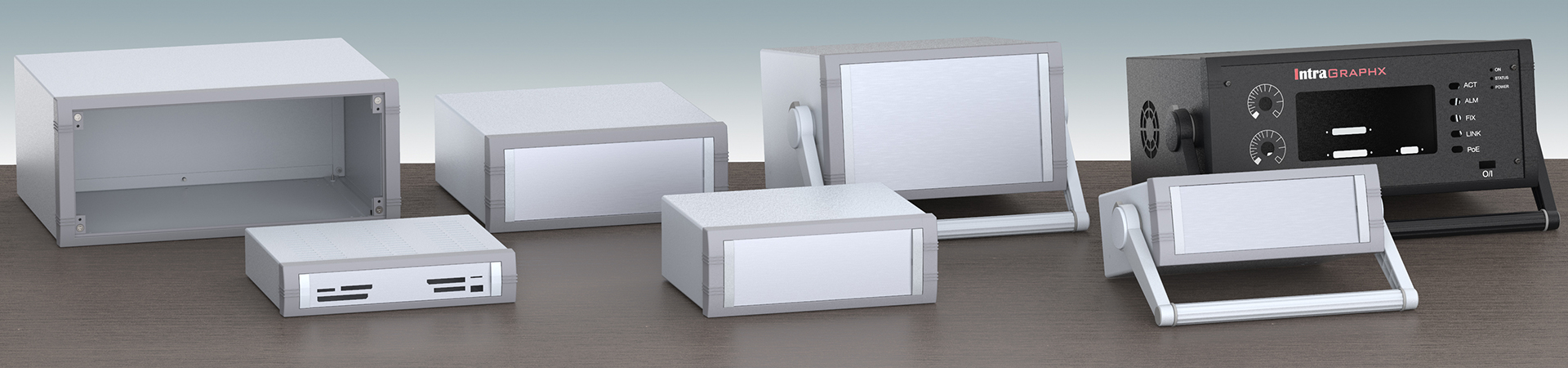

Unimet

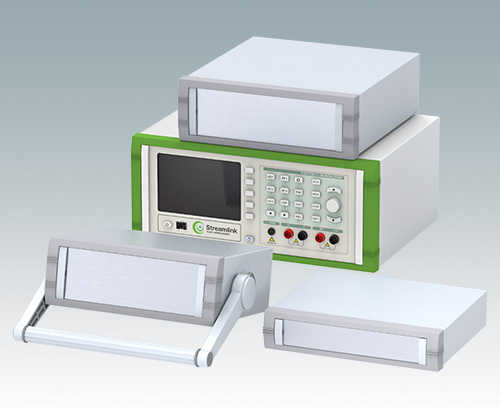

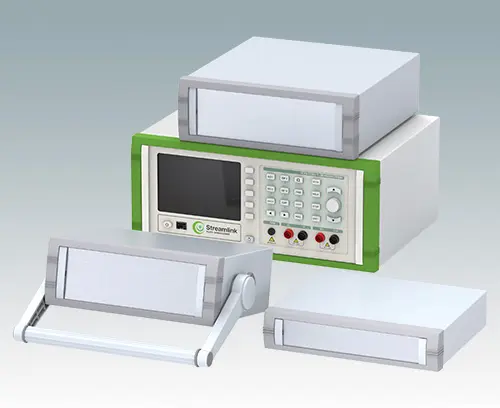

Modern desktop and portable instrument enclosures

  • Stylish, robust and versatile aluminium design in six standard sizes

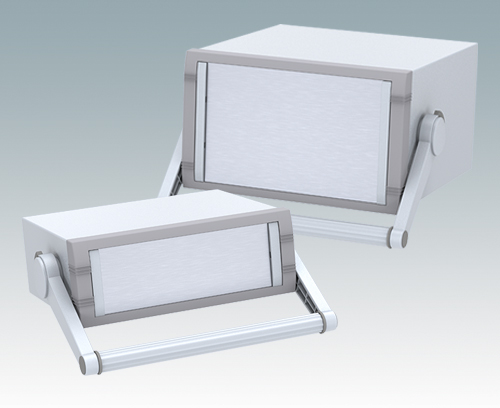

  • With or without a tilt/swivel carry handle bar

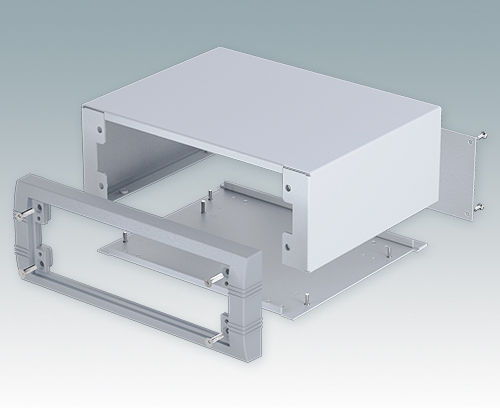

  • Die cast front bezel is assembled to the folded aluminium case body

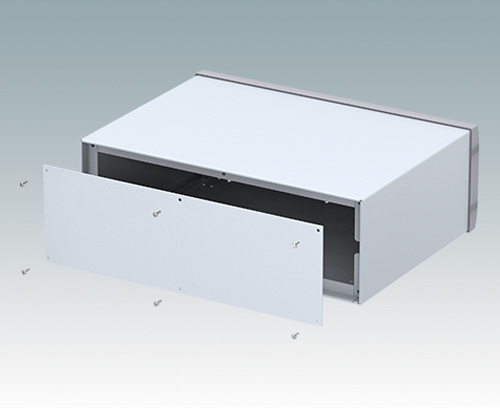

  • Removable rear panel - recessed for protection of connectors, switches etc.
  • Mounting holes in base for PCBs, chassis etc.

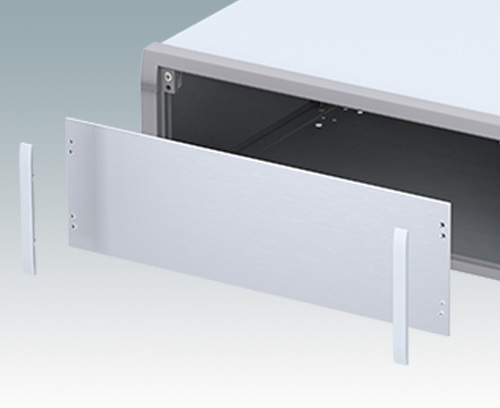

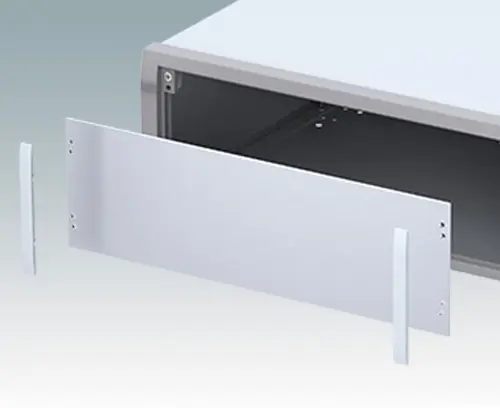

  • Anodised aluminium front panels (accessory)
  • Four non-slip rubber feet included
  • Supplied pre-assembled

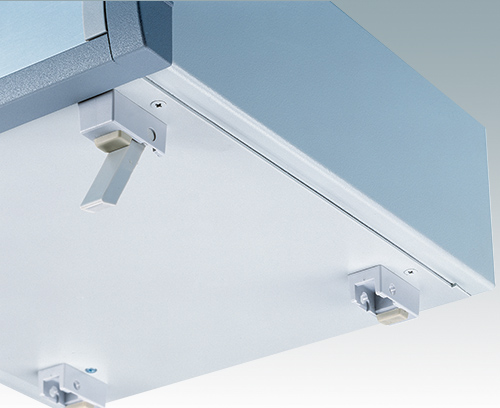

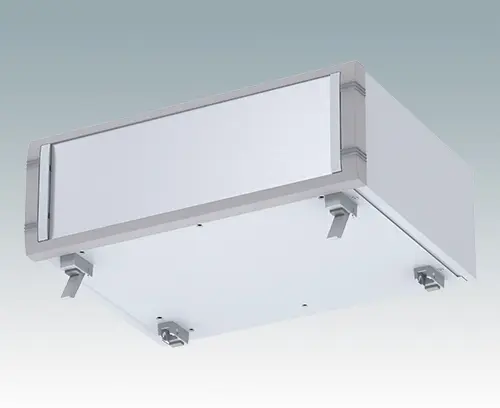

  • Optional moulded ABS tilt feet (accessory).

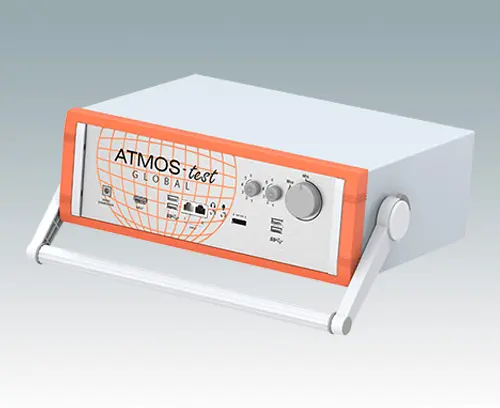

Order your own fully customised version learn more here >>

Generate PDF
  • Video

Application fields

Medical and wellness devices, test and measurement equipment, industrial control, peripheral devices and interfaces, switchboxes, communications and laboratory equipment.
  • Browse Full List
  • Accessories
  • Catalogue Documents

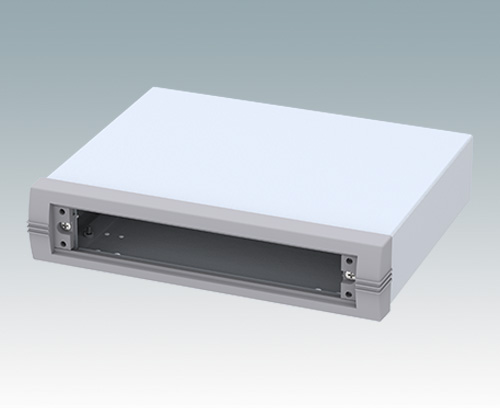

M5623005 UNIMET 1

M5623005

UNIMET 1 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5623005

UNIMET 1
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x190x50mm

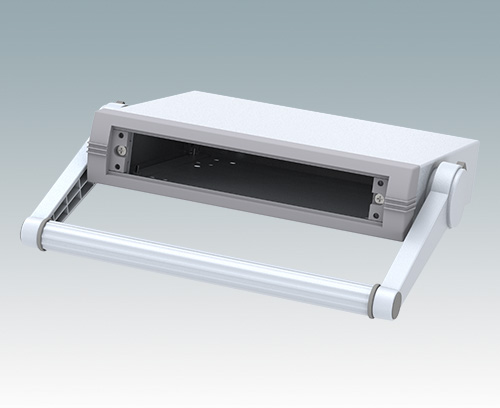

M5623025 UNIMET 1H

M5623025

UNIMET 1H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5623025

UNIMET 1H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x190x50mm

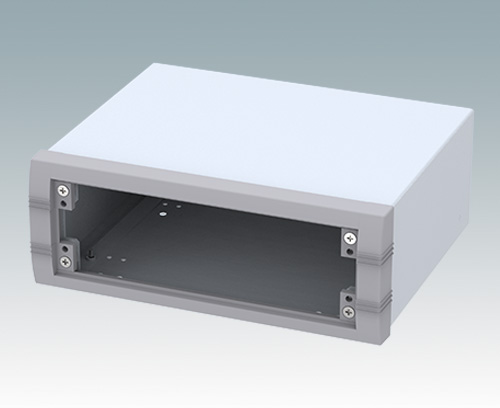

M5623105 UNIMET 2

M5623105

UNIMET 2 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.

Close

M5623105

UNIMET 2
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x190x85mm

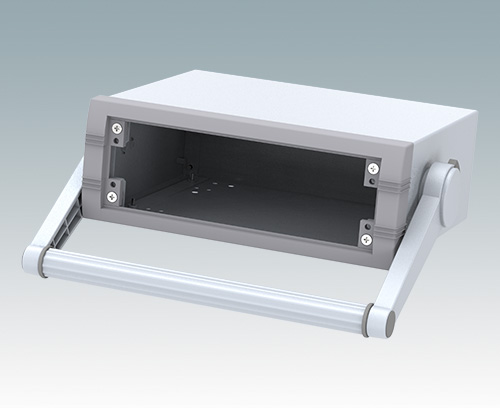

M5623125 UNIMET 2H

M5623125

UNIMET 2H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5623125

UNIMET 2H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x190x85mm

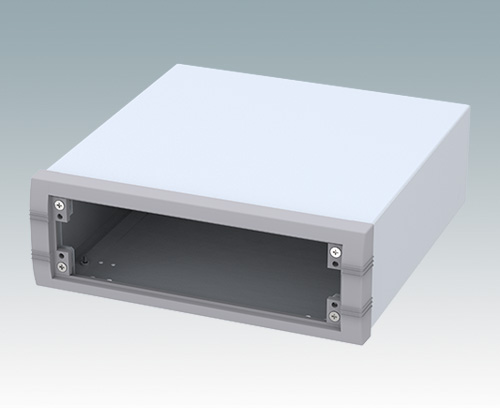

M5625105 UNIMET 3

M5625105

UNIMET 3 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.

Close

M5625105

UNIMET 3
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x260x85mm

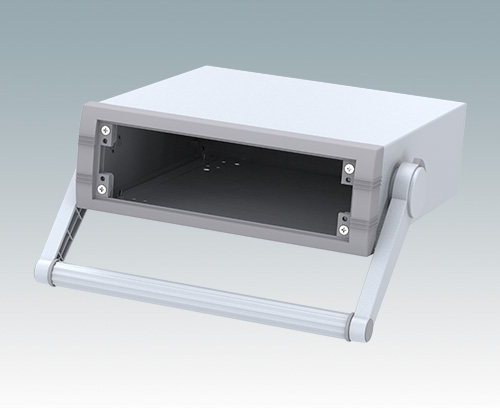

M5625125 UNIMET 3H

M5625125

UNIMET 3H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5625125

UNIMET 3H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x260x85mm

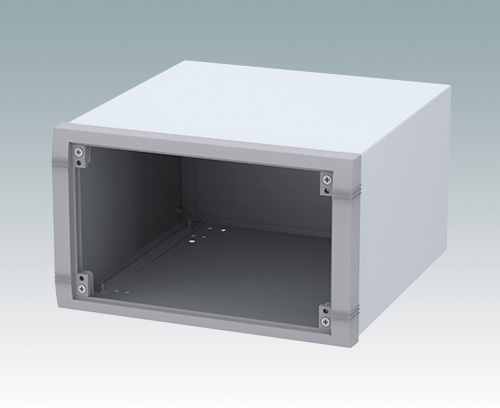

M5625305 UNIMET 5

M5625305

UNIMET 5 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.

Close

M5625305

UNIMET 5
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x260x150mm

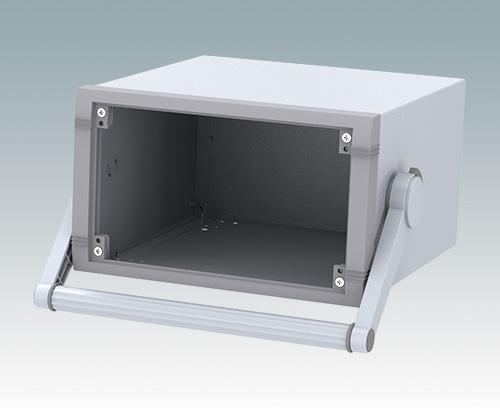

M5625325 UNIMET 5H

M5625325

UNIMET 5H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5625325

UNIMET 5H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x260x150mm

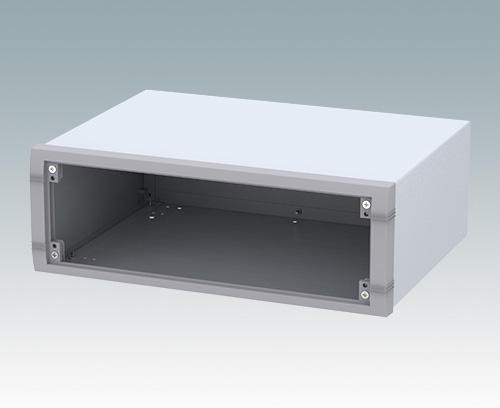

M5635205 UNIMET 4

M5635205

UNIMET 4 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.

Close

M5635205

UNIMET 4
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x260x120mm

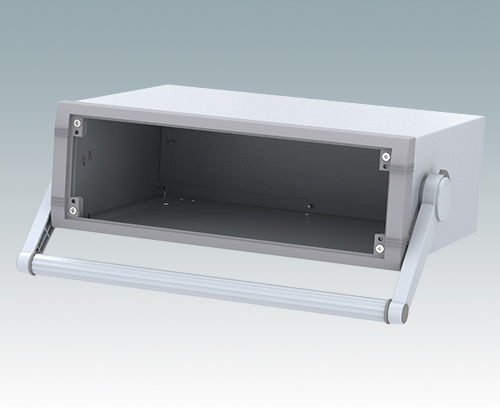

M5635225 UNIMET 4H

M5635225

UNIMET 4H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5635225

UNIMET 4H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x260x120mm

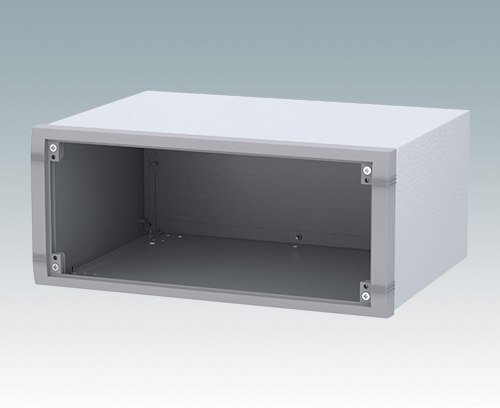

M5635305 UNIMET 6

M5635305

UNIMET 6 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.

Close

M5635305

UNIMET 6
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x260x150mm

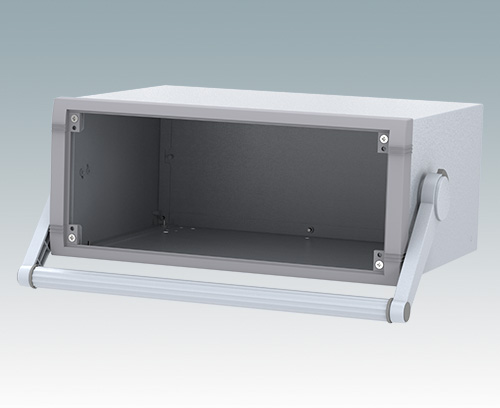

M5635325 UNIMET 6H

M5635325

UNIMET 6H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5635325

UNIMET 6H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x260x150mm

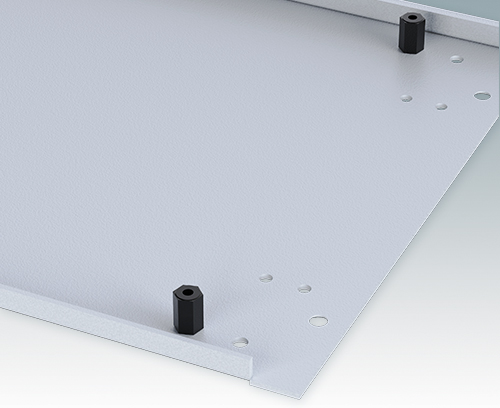

M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm countersink fixing screws.

Close

M5600001

PCB mounting kit
product added to your basket
PA 6
Black RAL 9005
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket
Steel
Zinc coated
6mm

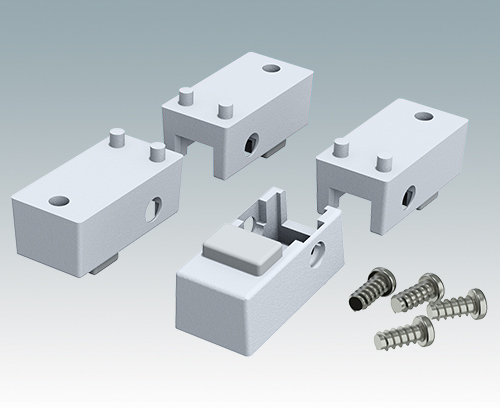

M5600015 Case Feet Kit 1

M5600015

Case Feet Kit 1 Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness. Call us for a free sample.

Version Without tilt legs.

Supply Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

Close

M5600015

Case Feet Kit 1
product added to your basket
ABS (UL 94 HB)
Light grey RAL 7035
34x17x16mm

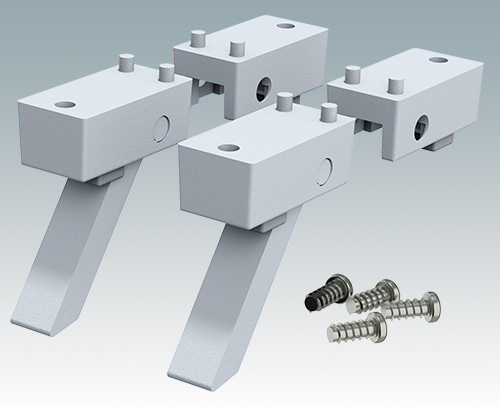

M5600045 Case Feet Kit 2

M5600045

Case Feet Kit 2 Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs.

Supply Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

Close

M5600045

Case Feet Kit 2
product added to your basket
ABS (UL 94 HB)
Light grey RAL 7035
34x17x16mm

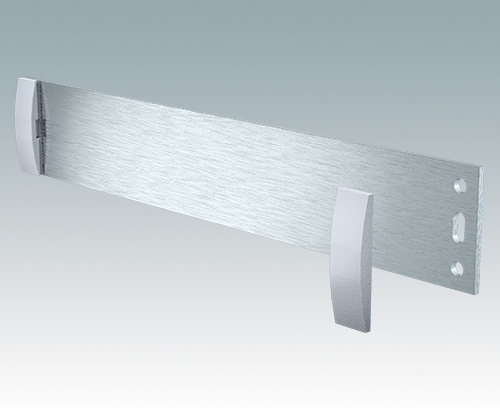

M5700607 Front panel kit (1/1H)

M5700607

Front panel kit (1/1H) Front panel kit for Unimet 1/1H and Unimet-Plus 1/1H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700607

Front panel kit (1/1H)
product added to your basket
Aluminium
Matt anodised
199.5x2x33.6mm

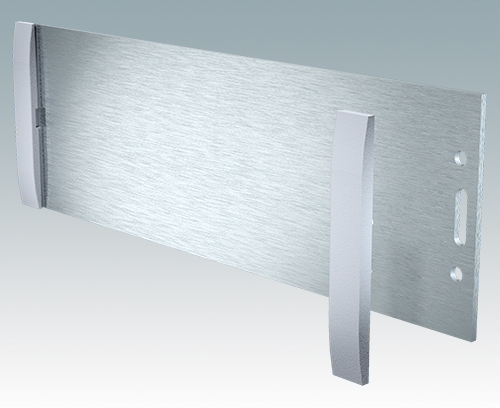

M5700608 Front panel kit (2/2H)

M5700608

Front panel kit (2/2H)

Front panel kit for Unimet 2/2H and Unimet-Plus 2/2H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700608

Front panel kit (2/2H)
product added to your basket
Aluminium
Matt anodised
199.5x2x65.1mm

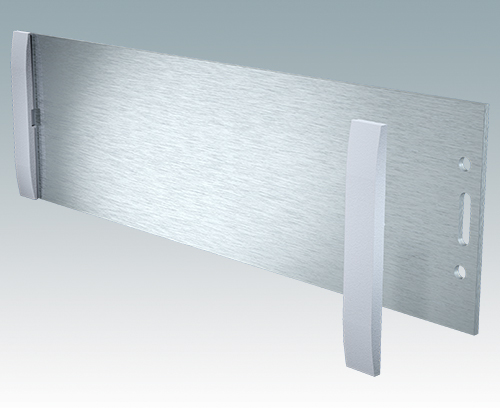

M5700613 Front panel kit (3/3H)

M5700613

Front panel kit (3/3H)

Front panel kit for Unimet 3/3H and Unimet-Plus 3/3H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700613

Front panel kit (3/3H)
product added to your basket
Aluminium
Matt anodised
219.5x2x65.1mm

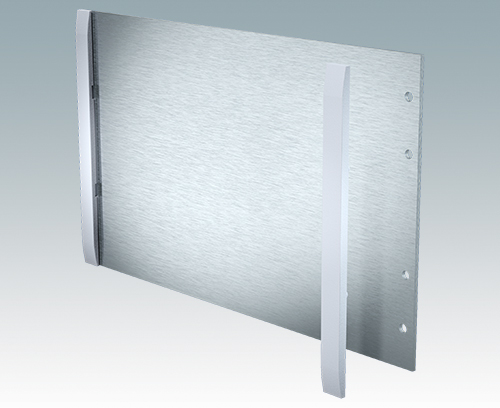

M5700616 Front panel kit (5/5H)

M5700616

Front panel kit (5/5H)

Front panel kit for Unimet 5/5H and Unimet-Plus 5/5H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700616

Front panel kit (5/5H)
product added to your basket
Aluminium
Matt anodised
219.5x2x130.1mm

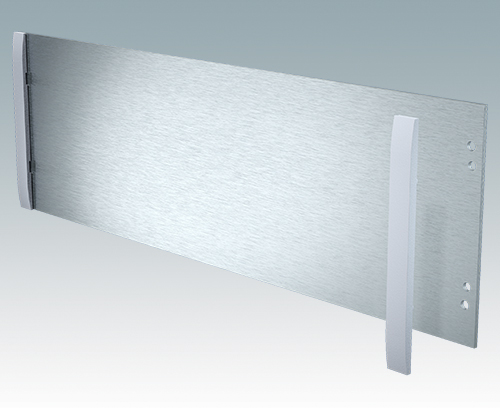

M5700620 Front panel kit (4/4H)

M5700620

Front panel kit (4/4H) Front panel kit for Unimet 4/4H and Unimet-Plus 4/4H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700620

Front panel kit (4/4H)
product added to your basket
Aluminium
Matt anodised
319.5x2x100.1mm

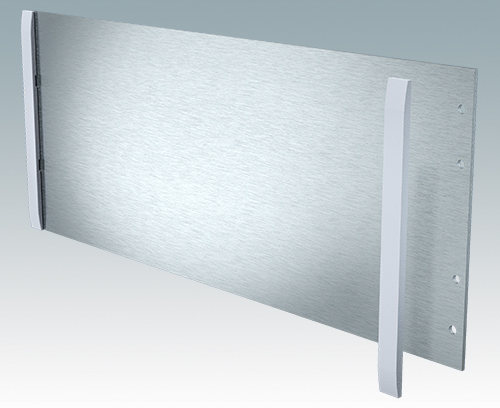

M5700621 Front panel kit (6/6H)

M5700621

Front panel kit (6/6H) Front panel kit for Unimet 6/6H and Unimet-Plus 6/6H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700621

Front panel kit (6/6H)
product added to your basket
Aluminium
Matt anodised
319.5x2x130.1mm
