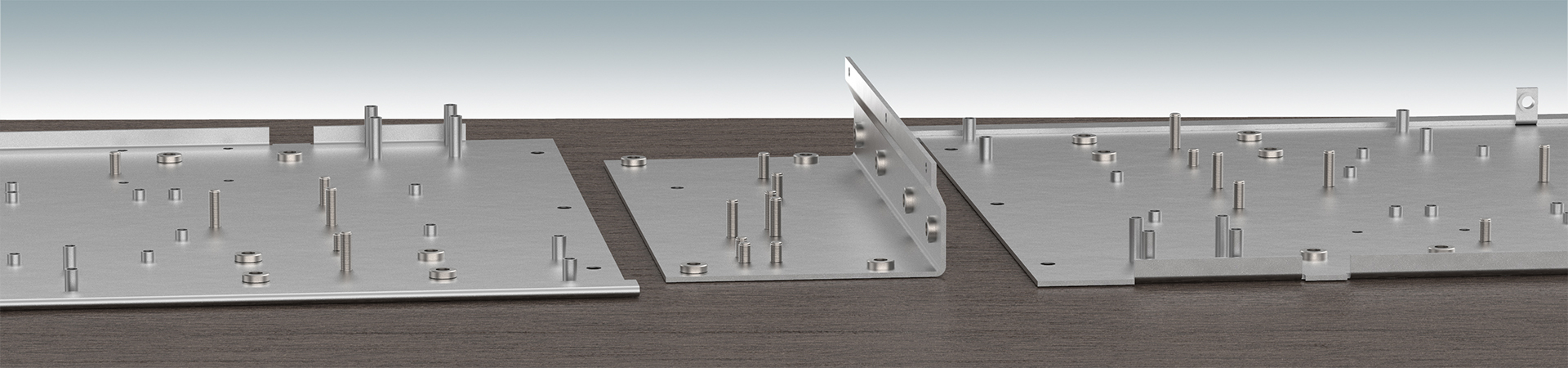

Inserting hardware into sheet metal
Scroll

Inserts & Fixings

Fitting assembly fixings to front panels and enclosures

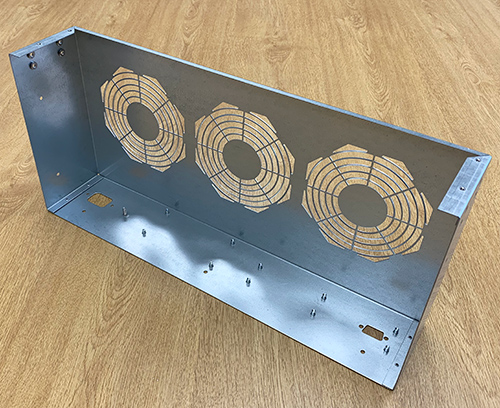

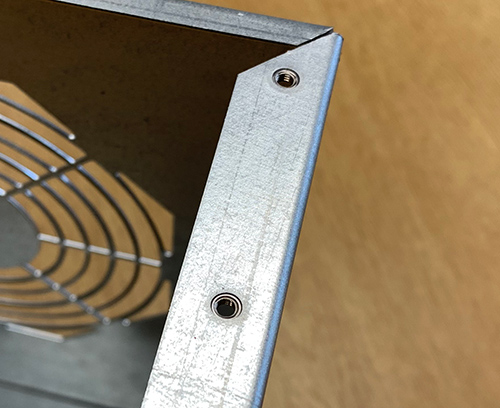

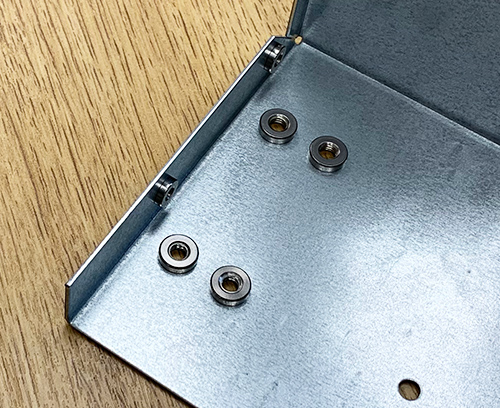

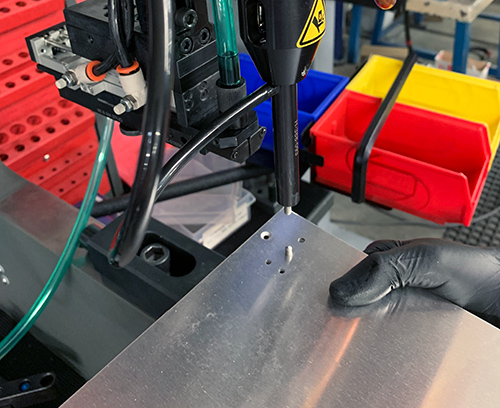

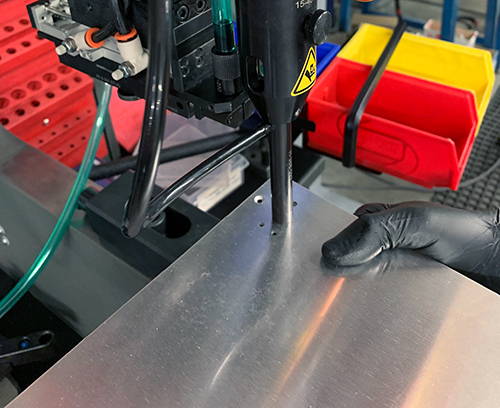

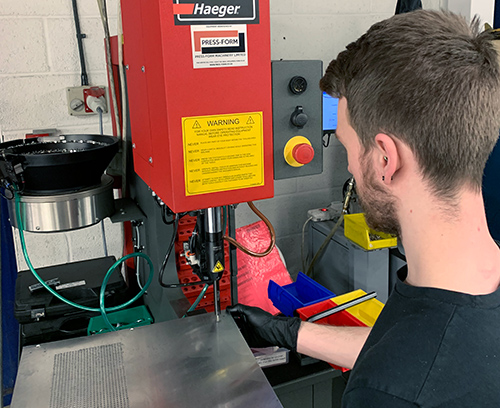

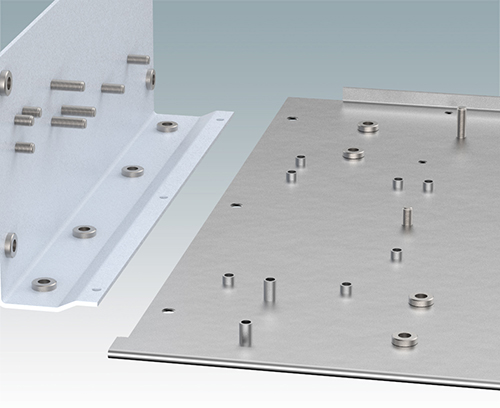

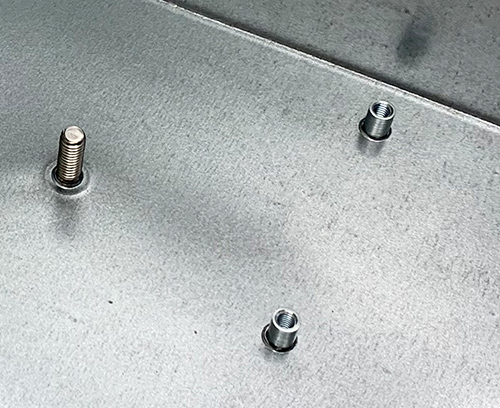

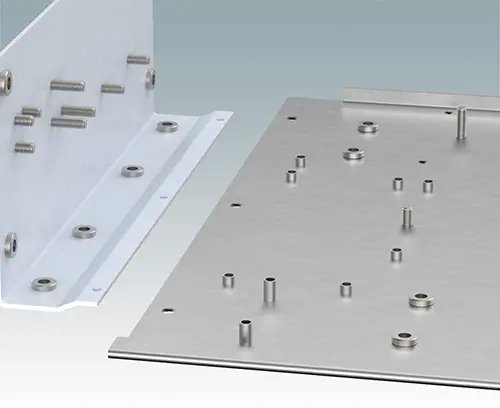

We can fit a wide selection of fixings including threaded inserts and studs on to aluminium and steel enclosure covers and panels. These can be used for mounting your PCBs, connectors, controls and electronic assemblies.

See below for a list of the standard fixings we use. Our engineers will be happy to suggest suitable inserts and fixings to suit your design requirements.

What we can fit:

  • Metric fasteners (unified on request)
  • Typically with M2, M2.5, M3, M4, M5 and M6 threads
  • Self-clinch nuts, studs, blind standoffs, through standoffs
  • PCB Clip-on Standoffs, 90 degree panel nuts, cable tie mounts.
  • Earth studs on to aluminium panels and earth tags on to steel panels
  • Concealed head threaded studs to avoid any witness on the external surface of the panel.
  • As an alternative to inserts, we can also create a burst hole in the sheet material and tap the required thread

Contact our sales team for more information and a quotation.

Generate PDF
  • Browse Full List
  • Catalogue Documents

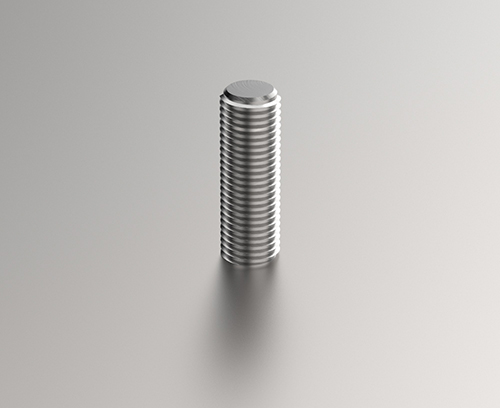

M0000700 Flush Head Fixing Studs

M0000700

Flush Head Fixing Studs

Flush mounted fixing stud which is press fitted to a hole in the panel.

Thread Size Lengths (mm) Mounting Hole (mm)
M2 6 | 8 | 10 | 12 | 16 | 18 | 20 Ø2
M2.5 6 | 8 | 10 | 12 | 15 | 18 | 20 Ø2.5
M3 5 | 6 | 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 30 | 35 Ø3
M3.5 8 | 10 | 12 | 15 | 16 Ø3.5
M4 6 | 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 45 | 50 Ø4
M5 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 50 Ø5
M6 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 45 | 50 Ø6
Close

M0000700

Flush Head Fixing Studs
product added to your basket
Steel

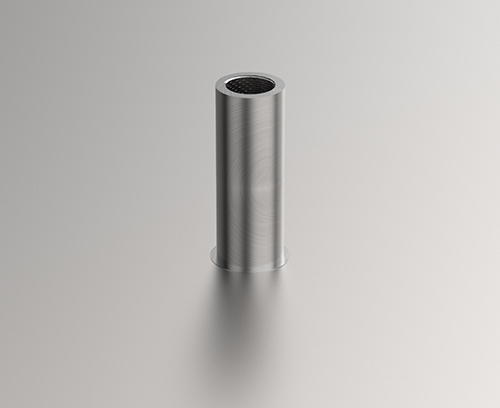

M0000701 Through Standoffs

M0000701

Through Standoffs

Through fixing standoff which is press fitted to a hole in the panel.

Thread Size Lengths (mm) Mounting Hole (mm)
M2 3 | 4 | 5 | 6 | 7 | 8 Ø4.2
M2.5 5 | 6 | 8 | 10 | 12 | 14 Ø4.2
M3 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 Ø4.2
M4 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 Ø7.2
M5 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 Ø7.2
Close

M0000701

Through Standoffs
product added to your basket
Steel
M0000702 Blind Standoffs

M0000702

Blind Standoffs

Blind fixing standoff which is press fitted to a hole in the panel.

Thread Size Lengths (mm) Mounting Hole (mm)
M2 10 Ø4.2
M2.5 6 | 8 | 10 | 12 | 14 | 16 Ø4.2
M3 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 Ø4.2
M4 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 Ø7.2
M5 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 25 Ø7.2
Close

M0000702

Blind Standoffs
product added to your basket
Steel
M0000703 Concealed Head Standoffs

M0000703

Concealed Head Standoffs

Concealed head fixing standoff which is press fitted to a hole in the panel.

Panel Thickness (mm) Thread Size Lengths (mm)
1.6 M3 4 | 6 | 8 | 10 | 12 | 16 | 20
2.4 M3 4 | 6 | 8 | 10 | 12 | 16 | 20
1.6 M4 6
2.4 M4 6 | 8 | 10
Close

M0000703

Concealed Head Standoffs
product added to your basket
Steel

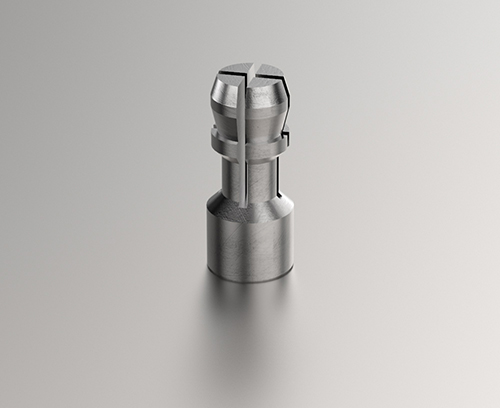

M0000704 PCB Standoffs

M0000704

PCB Standoffs

PCB fixing standoff which is press fitted to a hole in the panel. The PCB clips onto the standoff.

Hole B in PCB (mm) Lengths (mm) Mounting Hole A (mm)
Ø4 8 Ø5.4
Ø4 10 Ø5.4
Ø4 12 Ø5.4
Ø4 14 Ø5.4
Ø4 16 Ø5.4
Ø4 18 Ø5.4
Ø4 20 Ø5.4
Ø4 22 Ø5.4
Ø4 25 Ø5.4
Close

M0000704

PCB Standoffs
product added to your basket
Steel

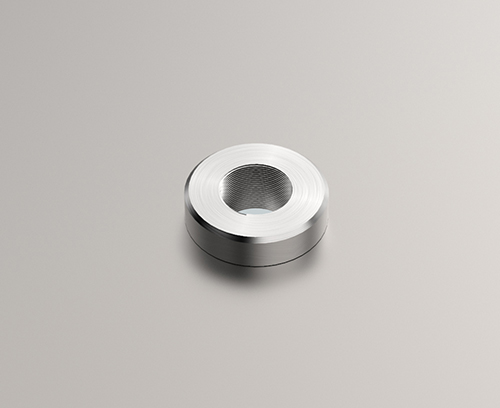

M0000720 Self-Clinch Nuts

M0000720

Self-Clinch Nuts

Self-clinching nut which is press fitted to a hole in the panel.

Thread Sizes Mounting Hole (mm)
M2 Ø4.2
M2.5 Ø4.2
M3 Ø4.2
M3.5 Ø4.75
M4 Ø5.4
M5 Ø6.4
M6 Ø8.75
M8 Ø10.5
M10 Ø14
Close

M0000720

Self-Clinch Nuts
product added to your basket
Steel

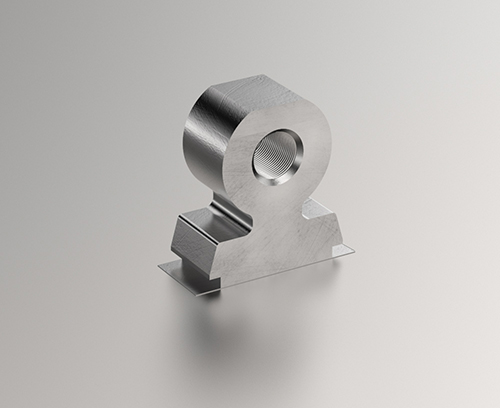

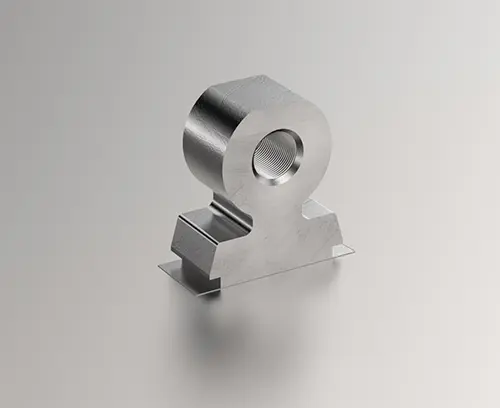

M0000721 Right Angle Panel Nuts

M0000721

Right Angle Panel Nuts

Threaded right angle fastener which is press fitted into a rectangular hole in the panel.

Thread Size Width (mm) Fixing Hole Height (mm) Mounting Hole (mm)
M3 2.89 7 8 x 3 mm
M3 3.89 7 8 x 4 mm
M3 5.89 7 8 x 6 mm
M4 3.89 9 10 x 4 mm
M4 6.89 9 10 x 7 mm
M4 8.89 9 10 x 9 mm
Close

M0000721

Right Angle Panel Nuts
product added to your basket
Steel

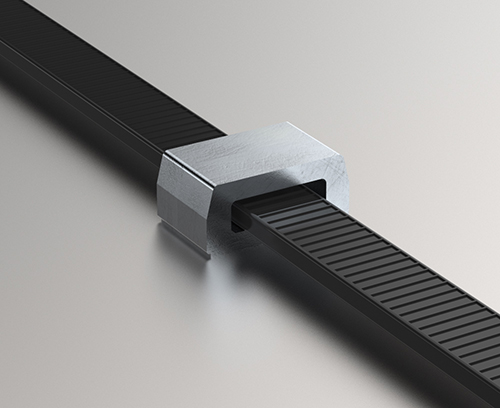

M0000730 Cable Tie Mounts

M0000730

Cable Tie Mounts

Cable tie mount which is push fitted into a rectagular hole in the panel.

Cable Tie Aperture (mm) Mounting Hole (mm)
4.06 x 1.65 6.35 x 3.18
5.21 x 1.65 7.90 x 4.75
9.14 x 2.4 12.7 x 9.5
Close

M0000730

Cable Tie Mounts
product added to your basket
