M7000942 Internal Mounting Plate Kit – C325
Scroll

M7000942

Internal Mounting Plate Kit – C325

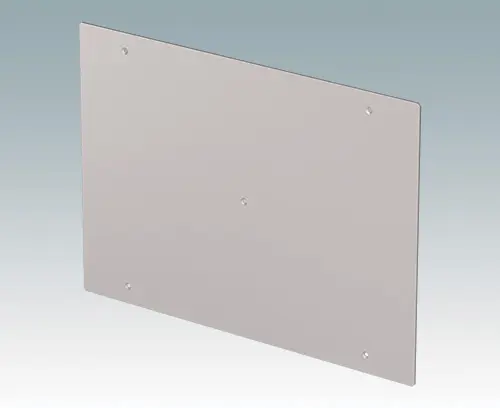

Internal mounting plate kit for enclosure size C325. For mounting heavy PCB assemblies, power supplies etc. Fits to the M3 mounting pillars in the rear panel.

Supply

Mounting plate, M3 x 8 (x5)

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M7000942

Please select the product details you would like to include in the PDF.

Close
  • To be used for
M7036102 TECHNOMET-CONTROL C325V

M7036102

TECHNOMET-CONTROL C325V

Modern and highly attractive aluminium instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.

Close

M7036102

TECHNOMET-CONTROL C325V
product added to your basket
Aluminium
Traffic Grey A RAL 7042
360x250x95mm
M7036106 TECHNOMET-CONTROL C325V

M7036106

TECHNOMET-CONTROL C325V

Modern and highly attractive aluminium instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.

Close

M7036106

TECHNOMET-CONTROL C325V
product added to your basket
Aluminium
Traffic white/traffic grey A RAL 9016/7042
360x250x95mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Natural finish
Standards
REACH compliant
RoHS compliant
Width
311 mm
Depth
225 mm
Height
1.5 mm

Catalogue Pages

Drawings

3D Models

Weight/1 part
0.4 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
U.K.
