M6400715 Front Panel 235
Scroll

M6400715

Front Panel 235

Front panel for Technomet TX124S.

Supply

Front panel (fixings supplied with the cases).

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6400715

Please select the product details you would like to include in the PDF.

Close
  • To be used for

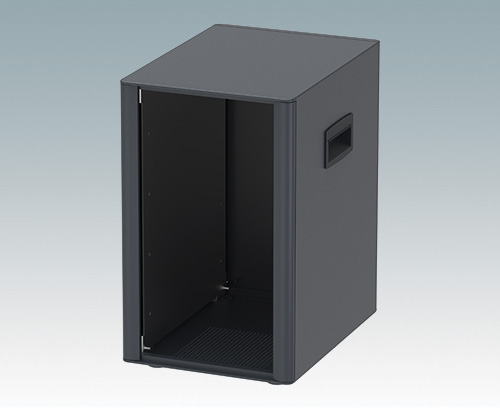

M6421754 Technomet TX235S

M6421754

Technomet TX235S Highly attractive tower style aluminium enclosures for instrumentation. Space-saving footprint maximises tabletop or workstation space. Modern and cohesive design with no visible fixing screws. Diecast front and rear bezels fit flush in the case body. Snap-on front and rear trims hide the case and front panel screws. Ventilation holes in the base and rear panel. Internal chassis for mounting three or four shelves (accessories) for PCBs and assemblies. M4 earth points on all panels. Supplied with side handles and non-slip ABS feet. Order front panels, shelves and PCB guides separately. Order your own fully customised version.

Version Tower format

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), M3 x 6 mm (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M6421754

Technomet TX235S
product added to your basket
Aluminium
Anthracite RAL 7016
220x300x350mm

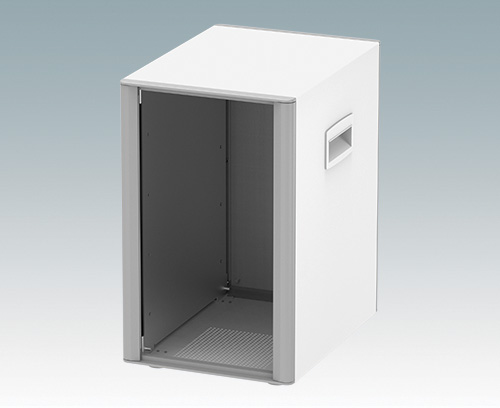

M6421756 Technomet TX235S

M6421756

Technomet TX235S Highly attractive tower style aluminium enclosures for instrumentation. Space-saving footprint maximises tabletop or workstation space. Modern and cohesive design with no visible fixing screws. Diecast front and rear bezels fit flush in the case body. Snap-on front and rear trims hide the case and front panel screws. Ventilation holes in the base and rear panel. Internal chassis for mounting three or four shelves (accessories) for PCBs and assemblies. M4 earth points on all panels. Supplied with side handles and non-slip ABS feet. Order front panels, shelves and PCB guides separately. Order your own fully customised version.

Version Tower format

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), M3 x 6 mm (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M6421756

Technomet TX235S
product added to your basket
Aluminium
Traffic white/traffic grey A RAL 9016/7042
220x300x350mm
  • Technical Data
  • 3D-Models & Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Matt anodised
Standards
REACH compliant
RoHS compliant
Width
192 mm
Height
2 mm
Depth
340.8 mm

Catalogue Pages

Drawings

3D Models

Weight/1 part
0.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
