A9300014 Side arm kit

A9300014

Side arm kit

For canting and carrying the enclosure. Strong push-button ratchet with 30° indexing. The enclosure must be machined with three holes on each side in order to fit the side arm kit (see drilling details). A separate aluminium handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure). The handle profiles are available in a range of matching colours. In order to improve the stability, we recommend glueing the handle profiles to the side arms.

Supply

2 side arms (RAL 9002), 2 push-buttons (RAL 7032), 2 fastenings kits

  • Components/Accessories

System components to complete

M50930-xxx Handle profile, RAL 9006

M50930-xxx

Handle profile, RAL 9006

Aluminium handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure).

How to order: replace xxx in the part number with the length required. Example: 350 mm wide enclosure, handle profile length is 324 mm (350-26). So the part number will be M50930-324 with the handle painted in RAL 9006. If the enclosure dimension is 350.5 mm the part number would be M50930-324.5 with the handle painted in RAL 9006.

Supply Handle profile

Close

M50930-xxx

Handle profile, RAL 9006
product added to your basket
Aluminium
Silver metallic RAL 9006

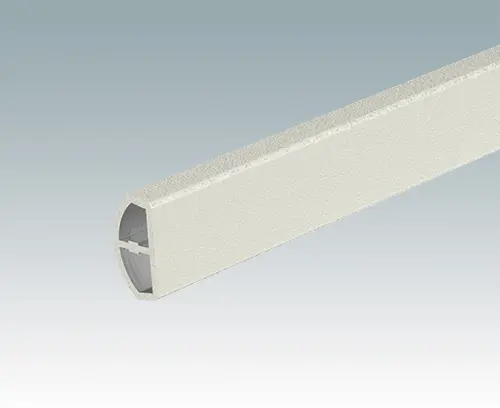

M50937-xxx Handle profile, RAL 9002

M50937-xxx

Handle profile, RAL 9002

Aluminium handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure).

How to order: replace xxx in the part number with the length required. Example: 350 mm wide enclosure, handle profile length is 324 mm (350-26). So the part number will be M50937-324 with the handle painted in RAL 9002. If the enclosure dimension is 350.5 mm the part number would be M50937-324.5 with the handle painted in RAL 9002.

Supply Handle profile

Close

M50937-xxx

Handle profile, RAL 9002
product added to your basket
Aluminium
Off-white RAL 9002
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Off-white RAL 9002,
Pebble Grey RAL 7032
Standards
REACH compliant
RoHS compliant
Weight/1 part
0.68 kg
Customs tariff number
(METCASE product)
79070000
Country of manufacture
Germany
