M50934-xxx

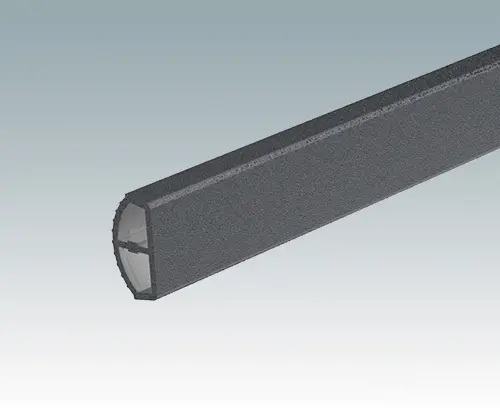

Handle profile, RAL 7016

Aluminium handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure).

How to order: replace xxx in the part number with the length required. Example: 350 mm wide enclosure, handle profile length is 324 mm (350-26). So the part number will be M50934-324 with the handle painted in RAL 7016. If the enclosure dimension is 350.5 mm the part number would be M50934-324.5 with the handle painted in RAL 7016.

Supply

Handle profile

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M50934-xxx

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

System components to complete

M5093004 Side arm kit

M5093004

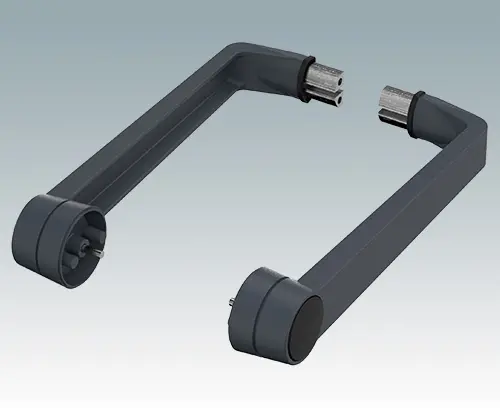

Side arm kit For canting and carrying the enclosure. Strong push-button ratchet with 30° indexing. The enclosure must be machined with three holes on each side in order to fit the side arm kit (see drilling details). A separate aluminium handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure). The handle profiles are available in a range of matching colours. In order to improve the stability, we recommend glueing the handle profiles to the side arms.

Supply 2 side arms (RAL 7016), 2 push-buttons (RAL 9005), 2 fastenings kits

Close

M5093004

Side arm kit
product added to your basket
Zinc
Anthracite RAL 7016
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Anthracite RAL 7016
Standards
REACH compliant
RoHS compliant

Catalogue Pages

3D Models

Weight/1 part
0 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
