M6219125 COMBIMET 19
Scroll

M6219125

COMBIMET 19" 1Ux365mm Solid Top

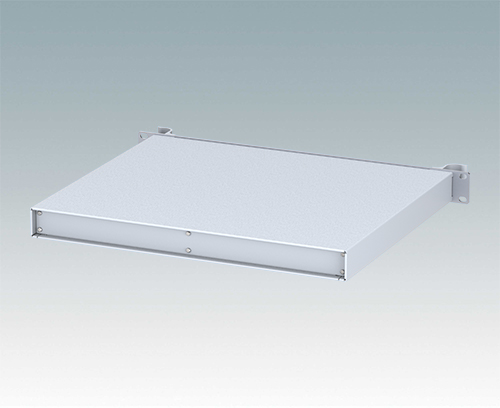

Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of a solid wrap around top cover with removable base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.

Version

Unventilated, solid top cover

Supply

19" front panel, top cover, base panel, rear panel, handle extrusion (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6219125

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm countersink fixing screws.

Close

M5600001

PCB mounting kit
product added to your basket
PA 6
Black RAL 9005
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket
Steel
Zinc coated
6mm
M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M5900018 19" mounting kit black screws

M5900018

19" mounting kit black screws Mounting kit for fitting a 19" rack case, subrack or front panel into a rack. Black screws and black cup washers.

Supply M6 caged nuts (x4), M6 x 16 mm black screw (x4) and black plastic cup washer (x4).

Close

M5900018

19" mounting kit black screws
product added to your basket
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035
M6200365 Mounting plate (365mm)

M6200365

Mounting plate (365mm) Internal mounting plate kit for COMBIMET 19" rack cases 365 mm deep. For mounting PCBs and electronic assemblies. Mounts to pre-punched holes in case base panels with the nylon pillars and screws supplied.

Supply Mounting plate, M3 nylon screw pillars (x9), M3 x 6 mm screws (x18).

Close

M6200365

Mounting plate (365mm)
product added to your basket
Aluminium
Natural finish
335x330x1.5mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Light grey RAL 7035
Standards
IEC 60297-3
REACH compliant
DIN 41494
RoHS compliant
Height
43.6 mm
Width
482.6 mm
Depth
365 mm
Height Unit
1 U
PCB length, base
330 mm
PCB width, base
335 mm

Catalogue Pages

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
1 g
